X-Y Transfer Table

LEEV has 15+ years of experience manufacturing X-Y transfer tables and is a leading company in China in this field.
We cooperate with HOMAG, BIESSE, SCM and other international brand agents, exporting to 32+ countries.
In 2024, LEEV received the IKEA Supplier Outstanding Contribution Award.

Send Inquiry

Product Introduction

Jiangsu LEEV Industrial Automation Co., Ltd. is one of the leading manufacturers and suppliers of x-y transfer table in China. Please feel free to buy x-y transfer table made in China here and get quotation from our factory. All customized products are with high quality and competitive price.

Product Overview

The X-Y Transfer Table is a high-efficiency workpiece handling system capable of simultaneous X-Y directional transfer.

Table surface divided into large and small rollers, arranged in an interleaved pattern
Dual-height adjustment via cylinders for flexible movement of panels or stacked workpieces
Widely used in furniture factory packaging areas or door factory cold press retrofit zones
Ideal for high-frequency operations requiring multi-directional transport

Technical Specifications

No.	Dimensions (L×W×H mm)	Roller Groups	Stroke (mm)	Cylinders	Legs (mm)	Load Capacity (kg/unit)
1	2500×600×300±20	7	20	6	4040/30	1000
2	2500×600×300±20	7	20	8	6040/30	2000
3	2500×850×300±20	7	20	6	4040/30	1000
4	2500×850×300±20	7	20	8	6040/30	2000
5	2500×1300×400±20	7	20	6	8040/30	2000
6	2500×1300×400±20	7	20	8	8040/30	3000

Customizable in size, load capacity, and structure according to your production requirements.

Key Advantages

1. Multi-Directional Transfer
Interleaved X-Y rollers allow stacked workpieces to be moved at once, improving efficiency.

2. Robust & Durable Structure
Simple, easy-to-maintain design with a service life of over 15 years.

3. High-Quality Corrosion-Resistant Rollers
Rollers are hot-dip galvanized, passing 72-hour salt spray test, ensuring long-term rust-free use.

Customer Applications

Furniture factory packaging areas connecting multiple workstations

Door factory cold press retrofit zones

High-frequency manual operation environments, with long-term stable performance

FAQ

Q: What is the load capacity and service life?

A: Load options: 1 ton, 2 tons, or 3 tons. Service life: over 15 years.

Q: Which industries is it suitable for?

A: Mainly used in furniture factories, panel processing, door factories, and packaging lines, especially for high-frequency, multi-directional operations.

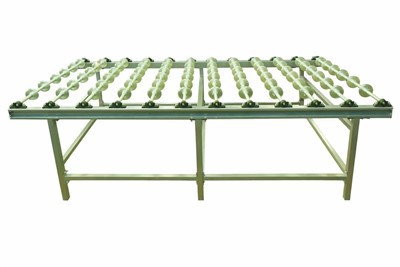

Hot Tags: x-y transfer table, China x-y transfer table manufacturers, suppliers, factory, 90 Degree Roller Conveyor, Conveyor Edge Guard, Door Panel Glue Roller, Furniture Roller Conveyor Turn, Manual Glue Roller System, Rail Guided Roller Cart
