Single-Direction Transfer Table

LEEV has 15+ years of experience manufacturing single-direction transfer tables, and is a leading company in China.
We maintain long-term cooperation with HOMAG, BIESSE, SCM, exporting to 32+ countries. In 2024, LEEV received the IKEA Supplier Outstanding Contribution Award.

Send Inquiry

Product Introduction

Jiangsu LEEV Industrial Automation Co., Ltd. is one of the leading manufacturers and suppliers of single-direction transfer table in China. Please feel free to buy single-direction transfer table made in China here and get quotation from our factory. All customized products are with high quality and competitive price.

Product Overview

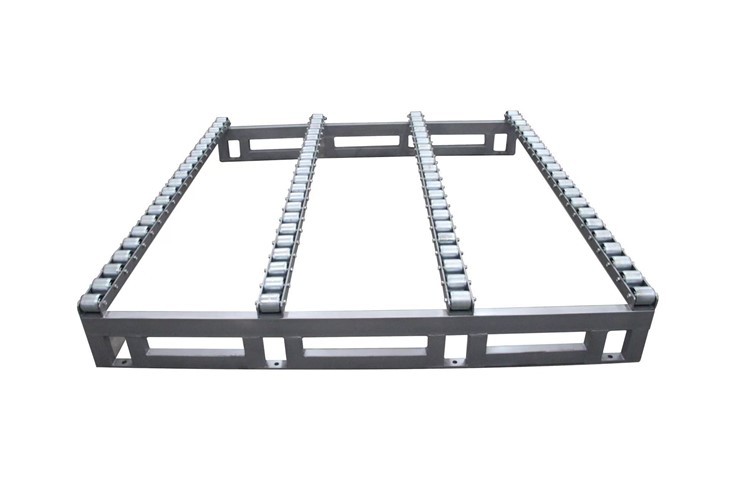

The Single-Direction Transfer Table features a small roller surface with cylinder lift design, enabling flexible front-to-back movement of stacked panels.

Ideal for door factory cold press retrofit zones and furniture factory packaging workstations
Reduces manual handling effort and improves operational efficiency
Suitable for high-frequency operations, ensuring smooth, stable transfer of workpieces

Technical Specifications

Length (mm)	Width (mm)	Height (mm)	Roller Groups	Roller Spacing (mm)	Stroke (mm)	Cylinders	Load Capacity (kg/unit)
1900	1580	Platform+80+20	4	100	20	6	1000
1900	1580	Platform+80+21	4	100	20	8	2000
1900	1580	Platform+80+22	4	100	20	8	3000
2400	1580	Platform+80+23	5	100	20	6	1000
2400	1580	Platform+80+24	5	100	20	8	2000
2400	1580	Platform+80+25	5	100	20	8	3000
1900	1880	Platform+80+26	4	100	20	6	1000
1900	1880	Platform+80+27	4	100	20	8	2000
1900	1880	Platform+80+28	4	100	20	8	3000
2400	1880	Platform+80+29	5	100	20	6	1000
2400	1880	Platform+80+30	5	100	20	8	2000
2400	1880	Platform+80+31	5	100	20	8	3000

Customizable in size, load, and number of cylinders to fit your production line.

Key Advantages

1. Efficient Single-Direction Transfer

Small rollers are arranged for fast movement of stacked panels, saving labor.

2. Durable & Reliable

Simple, robust structure with a service life of over 15 years.

3. Corrosion-Resistant Rollers

Hot-dip galvanized rollers pass 72-hour salt spray test, long-term rust-free operation.

Customer Applications

Door factory cold press retrofit zones

Furniture factory packaging workstations for stable full-pallet transfer

Long-term, high-frequency operations, low maintenance required

Improves production efficiency and reduces labor intensity

FAQ

Q: What is the load capacity and service life?

A: Options: 1 ton, 2 tons, or 3 tons. Service life: over 15 years. Parameters can be adjusted to match process and equipment requirements.

Q: Which industries are suitable?

A: Furniture factories, panel processing, door factories, and packaging lines; especially suitable for high-frequency, single-direction transport.
