Door Panel Glue Roller

LEEV is a leading manufacturer of industrial knife roller equipment in China, providing automated door panel glue solutions for listed companies such as Oppein, Kindi, and Tata.
Our machines are exported to 32 countries, and in 2024, we received the IKEA Supplier Outstanding Contribution Award.

Send Inquiry

Product Introduction

Jiangsu LEEV Industrial Automation Co., Ltd. is one of the leading manufacturers and suppliers of door panel glue roller in China. Please feel free to buy door panel glue roller made in China here and get quotation from our factory. All customized products are with high quality and competitive price.

Product Overview

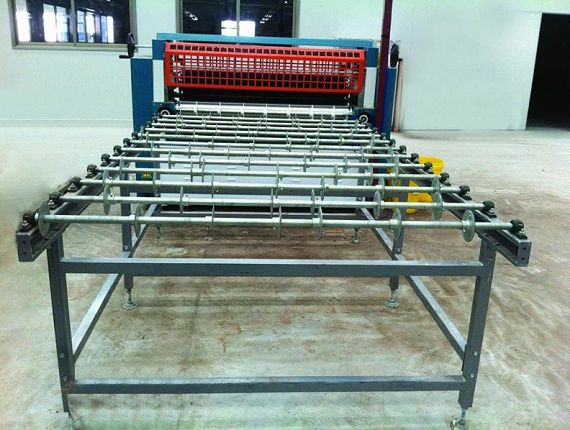

The LEEV Door Panel Glue Roller Machine is designed for door panel glue application, ensuring even coating, reducing glue waste, and improving production efficiency.

Features:

High-precision knife rollers made from 45# carbon steel, zinc-plated for durability and wear resistance
Minimal blade overhang (1mm) for controlled glue transfer
Suitable for various door panels and wooden boards, compatible with manual or semi-automatic processes

Main Applications:

Door panel glue lines in factories
Small auxiliary glue stations
High-frequency coating operations

Technical Specifications

No.	Name	Parameter
1	Dimensions	L2500 × W1200 × H800 mm
2	Load Capacity	100 Kg/unit
3	Knife Rollers	Φ99 mm carbon steel, 12 sets/unit, 7 rollers per set
4	Drive	Manual
5	Main Beam	82×42 mm, 3 mm thick, hot-dip galvanized, bent
6	Inner Shaft	Φ22 mm drawn steel
7	Support Legs	60×40×1.5 mm square tube, welded & powder-coated
8	Adjustable Feet	M16×130 mm with M6 expansion holes

Customizable: knife roller quantity, size, and load capacity can be tailored to site requirements.

Key Advantages

High Corrosion Resistance

Hot-dip galvanized main beam, 72-hour salt spray tested, long-term use without rust.

Precision Manufacturing

CNC-bent main beam ensures stable structure and flat panel support.

Durable Knife Rollers

45# carbon steel, zinc-plated, lifespan 15+ years, maintains performance under high-frequency operation.

Low Maintenance

Simple structure, easy to clean and maintain.

Customer Applications

Oppein Door Factory: Installed on glue line, long-term high-frequency use, consistent glue application, reduced waste.

Kindi & Tata Factories: Minimal blade overhang ensures precise glue coating, reducing material consumption.

Export Projects: Europe and Asia markets confirm stable operation and low long-term maintenance costs.

FAQ

Q: What is the service life of LEEV glue roller machines?

A: Over 15 years. The first batch delivered in 2011 still operates reliably in customer factories.

Q: Can the knife rollers be customized?

A: Yes, blade quantity, size, and spacing can be customized based on panel dimensions, coating thickness, and production line speed.
